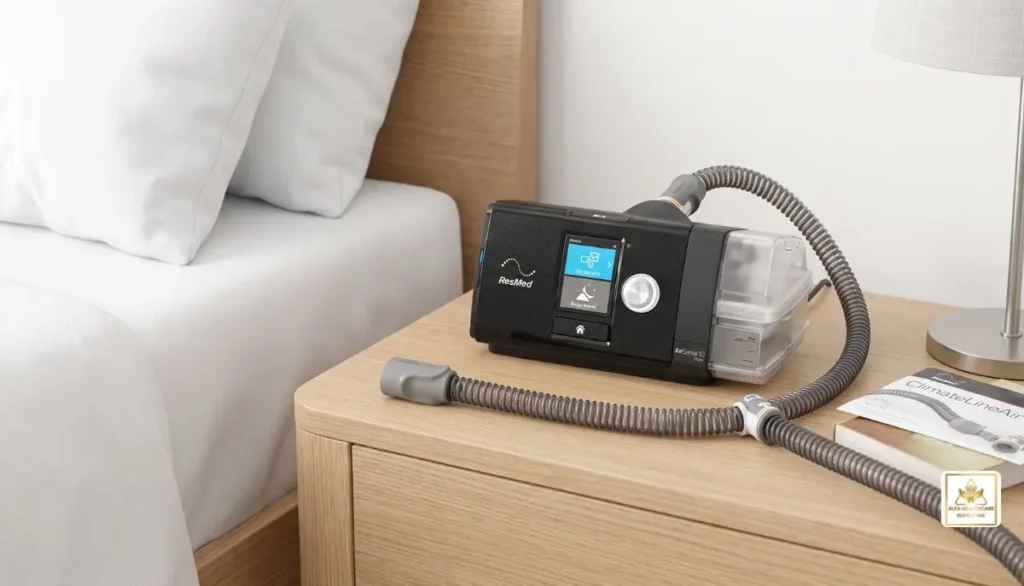

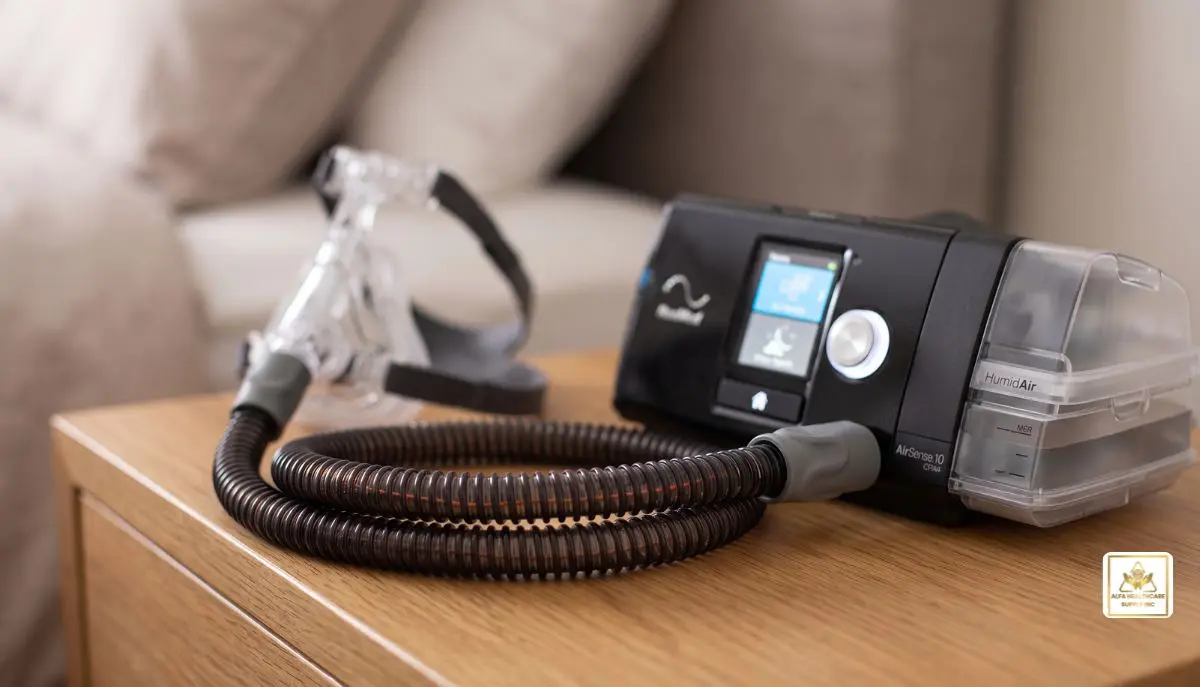

ResMed ClimateLineAir Heated Tube for AirSense 10 and AirCurve 10 CPAP Machine

This ResMed ClimateLineAir Heated Tube is meant to be used with AirSense 10 and AirCurve 10 CPAP machines.

It’s much more comfortable to use a CPAP or bilevel machine nightly when it feels comfortable. Humidification can help many people, and it’s a problem that many people face: condensation can form inside the CPAP tubing. It’s also known as CPAP rainout.

The ResMed ClimateLineAir heated tube for AirSense 10 and AirCurve 10 CPAP machine is intended to assist in addressing this issue while keeping the CPAP machine and mask warm as the humidified air circulates between the humidifier and the mask.

The ClimateLineAir heated tube is included in ResMed’s Climate Control system for Air10 devices such as AirSense 10 and AirCurve 10 series. ResMed says the heated tube is used to keep the temperature of the humidified air warm as it circulates through the tubing.

A heated tube might appear to be a minor addition for the individual who already has an AirSense 10 or an AirCurve 10. In reality, it could be a significant factor in making a more comfortable therapy area.

What is the ResMed ClimateLineAir Heated Tube?

The ResMed ClimateLineAir heated tube is a specialised CPAP tube for use with compatible ResMed Air10 therapy devices.

The ClimateLineAir tube is different from the normal CPAP tubing and has heating and temperature sensing technology. It is used for a uniform air temperature when air flow through the tube to the mask is humidified.

The device is part of the AirCurve 10 and AirSense 10 Climate Control system, ResMed says.

Combined with the machine’s humidification system, the tube will help maintain comfortable airflow and minimize the risk of condensation building up in the tubing.

In simple terms

Think of it this way:

CPAP machine → humidifier → heated ClimateLineAir tube → mask → you

During the flow to the mask the humidified air is kept at a controlled temperature by the heated tube.

This may be helpful when the room is cool or when the higher humidification settings result in water droplets forming in the standard tubing.

Why Use a Heated CPAP Tube?

A common CPAP tube connects the CPAP device to the mask. Does not actively control the temperature of the air.

When the warm, humidified air is passed through a colder tube, the air may cool. It can then condense to form water droplets.

This is commonly known as rainout.

You may notice:

• Water droplets inside the tubing
• A damp or wet CPAP mask
• Gurgling sounds during therapy
• Water reaching the mask
• A cold feeling from the airflow
• Interrupted sleep because of moisture

ResMed is specifically referring to ClimateLineAir as a solution that can help control the temperature of humidified air and reduce rainout.

Heated tube ≠ feeling hot. Instead, the system is intended to control and maintain a comfortable and controlled temperature.

ResMed ClimateLineAir Heated Tube Compatibility

Before buying replacement CPAP tubing, one of the most crucial factors to take into account is compatibility.

The ClimateLineAir heated tube is made for ResMed Air10 devices such as compatible AirSense 10 and AirCurve 10 machines. ResMed’s information is specific to the accessories and does distinguish between ClimateLineAir tubing for Air10 machines and ClimateLineAir 11 tubing for Air11 machines.

Compatible device families include:

• ResMed AirSense 10
• ResMed AirSense 10 Elite
• ResMed AirSense 10 AutoSet
• ResMed AirSense 10 AutoSet for Her
• ResMed AirCurve 10 VAuto
• ResMed AirCurve 10 S
• ResMed AirCurve 10 ASV
• Compatible AirCurve 10 models that support ClimateLineAir

ResMed’s product documentation lists ClimateLineAir with multiple AirSense 10 and AirCurve 10 configurations.

Important: AirSense 10 vs. AirSense 11

The names can be confusing.

ClimateLineAir is intended for compatible Air10 devices.

ClimateLineAir 11 is designed for compatible Air11 devices.

ResMed states that ClimateLineAir and ClimateLineAir Oxy work with AirSense 10 and AirCurve 10, and ClimateLineAir 11 and ClimateLineAir 11 Oxy are designed to be used with Air11 products.

If you own an AirSense 10 or AirCurve 10, please ensure that you are not buying a tube that claims to be “ClimateLineAir” but is not an Air10 tube.

Key Features of the ResMed ClimateLineAir Heated Tube

The ClimateLineAir has been built with the focus on comfort, temperature management and the ability to work with ResMed’s Climate Control system.

1. Designed for AirSense 10 and AirCurve 10

The tube is specifically designed for compatible ResMed Air10 therapy devices.

This makes it a convenient replacement or upgrade for users who already have a compatible AirSense 10 or AirCurve 10 setup.

2. Heated Tubing Technology

Heating technology is built into the tubing to assist in keeping humidified air at the correct temperature while working its way towards the mask.

One of the greatest differences is between ClimateLineAir tubing and normal non-heated tubing for CPAP’s.

3. Helps Reduce CPAP Rainout

When the condensation is an issue, such as when it is water collecting inside the tube or mask, it can be a frustrating experience.

ClimateLineAir has been developed to help mitigate this by providing the air flow with a humidified temperature control.

4. Temperature Monitoring

The ClimateLineAir tube has a temperature sensor located close to the end of the tube that is connected to the mask.ResMed’s ClimateLineAir tube features a temperature sensor located close to the end of the tube attached to the mask. The system is designed to track temperature and in conjunction with the Climate Control algorithm. ResMed says the temperature of the tube is programmable from around 60°F (16°C) to 86°F (30°C).

5. Slim and Flexible Design

ClimateLineAir tubing is made slim to offer flexibility and minimize tube drag while sleeping. According to ResMed, the tubing is made to be flexible and comfortable to sleep on.

6. Works With Climate Control

Climate Control can automatically control the temperature and humidity settings when the right HumidAir humidifier and the right ClimateLineAir tubing are paired with the right AirSense 10 or AirCurve 10.

ResMed states that Climate Control Auto is able to automatically control the temperature and humidity for a comfortable therapy.

ClimateLineAir vs. Standard CPAP Tubing

A common question is whether heated tubing is really different from standard tubing.

Yes.

Standard tubing

Standard tubing simply carries air from the CPAP machine to the mask.

It does not actively heat the air or work with the machine’s Climate Control system in the same way.

ClimateLineAir heated tubing

ClimateLineAir combines tubing with temperature monitoring and heating technology.

This helps maintain a controlled temperature for humidified airflow and can reduce condensation.

The exact accessories supplied with a machine can vary by model and configuration, so always verify the device and tubing connection before ordering a replacement.

How Climate Control Works With ClimateLineAir

A great feature of an Air10 set up that is compatible is Climate Control.

The idea is to ensure the temperature and humidity match, so that the air that reaches the mask is as comfortable as possible, but not with too much condensation.

If Climate Control Auto is programmed and activated, the humidification and tube temperature can be controlled automatically by the Climate Control Auto.

AirSense10 and AirCurve10 machines with ClimateLineAir can provide automatic temperature and humidity management with Climate Control Auto, ResMed says.

Many users take the plunge into automatic control first.

However, comfort is personal. What feels comfortable to one person, may feel too hot or too cold to another.

How to Set Up the ClimateLineAir Heated Tube

Changing the CPAP tubes is typically simple, however adhering to the guidelines provided with your personal CPAP support and machine is important.

A basic setup involves the following steps.

Step 1: Turn off the CPAP machine

Switch off therapy and allow the machine to stop operating before disconnecting the tubing.

Step 2: Remove the existing tube

Carefully disconnect the current tube from the machine.

Avoid pulling aggressively on the tubing or connectors.

Step 3: Connect the ClimateLineAir

Connect the ClimateLineAir heated tube to the appropriate air outlet on the compatible ResMed Air10 device.

The electrical connector is designed for the device side of the tubing. ResMed’s documentation specifically notes that the electrical connector end should be connected to the device air outlet and not attached to the mask.

Step 4: Connect the mask

Attach the other end of the tubing to the CPAP mask.

Make sure the connection is secure.

Step 5: Check the tubing

Before starting therapy, check the tube for obvious damage, cracks, or loose connections.

Step 6: Adjust Climate Control

If your device supports Climate Control, select the appropriate setting according to your comfort and the manufacturer’s instructions.

If you are unsure about the correct settings, speak with your healthcare provider or qualified sleep-care professional.

How to Reduce CPAP Rainout With ClimateLineAir

Ever had condensation on the air tubing of your CPAP machine?

Humidified air can condense inside the tubing, causing rainout.

ClimateLineAir is particularly useful in fighting this problem.

ResMed recommends the use of Auto Climate Control as a point of reference for compatible AirSense 10 and AirCurve 10 systems. Once condensation persists, ResMed claims, users can switch to the Climate Control Manual function and raise the temperature of the tube. A decrease in humidity might help if the air becomes too warm and continues to condense.

A practical approach is:

Too much water → check humidity and tube temperature

Dry nose or throat → consider whether more humidification is appropriate

Air feels too warm → consider lowering the tube temperature

Do not make major therapy-pressure changes yourself. Pressure settings are different from comfort settings and should be managed according to your clinician’s instructions.

What If My CPAP Air Feels Too Warm?

The heated tube is not intended to make the air too hot to handle.

The ClimateLineAir system is designed to keep the temperature controlled and ResMed offers a temperature range of about 60°F to 86°F (16°C to 30°C) for the tube setting.

If the air getting into the machine is too warm, check the tube-temperature and Climate Control settings on your machine.

If you are not sure of the setting, contact your equipment supplier or health care worker.

What If My Nose or Throat Feels Dry?

Dryness can have several causes.

CPAP users sometimes experience:

• Dry mouth
• Dry nose
• Nasal irritation
• Nasal congestion

Some users will find pressurized air more comfortable if it can be humidified.

According to ResMed, humidification increases the moisture in the air and may relieve dryness.

But not all dryness is caused by a humidifier.

Mouth breathing, room conditions, a mask leak or any other reason may be a contributing factor.

Discuss the issue with your sleep-care professional or healthcare provider if any level of reasonable humidification is not effective in preventing dryness.

ClimateLineAir Heated Tube Specifications

According to ResMed documentation, the ClimateLineAir is a heated air tubing for compatible AirSense 10 and AirCurve 10 products.

The ResMed AirSense 10 user documentation lists the ClimateLineAir with:

• Length: approximately 2 meters
• Inner diameter: 15 mm
• Material: flexible plastic and electrical components

On the documentation, it mentions a cut-out for the temperature of the heated air tubing of ≤ 41°C.

The HCPCS code (A4604) is mentioned in ResMed’s product information for the U.S. market, specifically in the ClimateLineAir Heated Tube (part number: 37296) product documentation.

Specifications may differ depending on regional product documentation, please refer to product packaging and the latest manufacturer’s information when ordering.

ClimateLineAir vs. ClimateLineAir Oxy

Another point that can cause confusion is the difference between ClimateLineAir and ClimateLineAir Oxy.

ClimateLineAir

The standard ClimateLineAir heated tube is designed for compatible Air10 therapy devices.

ClimateLineAir Oxy

For users who need supplemental oxygen, there is a related heated tubing called ClimateLineAir Oxy. According to ResMed, the Oxy version is 19 mm in diameter.

These products should not automatically be considered interchangeable.

If you are using supplemental oxygen during your therapy, check with your health professional or oxygen equipment supplier that the tubing is set up properly.

How Often Should You Replace CPAP Tubing?

There is no single replacement schedule that fits every CPAP user.

Tubing condition is more important than simply counting months.

Inspect the tube regularly for:

• Cracks
• Holes
• Stiff or damaged sections
• Discoloration
• Persistent moisture
• Damaged connectors
• Loose connections
• Signs of wear

In the case of damage, replace the tubing.

ResMed’s product information recommends that the air tubing be washed weekly with warm water and mild detergent for cleaning.

Always clean and replace as directed by the manufacturer of your equipment.

How to Clean ClimateLineAir Tubing

Cleaning of the CPAP equipment is an essential component of the equipment care.

For the tubing:

1. Disconnect the tubing from the machine and mask.
2. Wash it using warm water and mild detergent according to the manufacturer’s instructions.
3. Rinse thoroughly.
4. Allow it to dry completely before reconnecting it.
5. Inspect the tubing for signs of damage.

Never use cleaning methods or chemicals not recommended for use with your equipment.

Additionally, do not immerse or clean electrical connections that might damage electrical components.

Signs That Your ClimateLineAir Tube May Need Replacement

Your heated tube may need replacement if you notice physical damage or changes in performance.

Look for:

1. Visible cracks

A cracked tube can cause an air leak.

2. Loose connectors

The tubing should connect securely to the machine and mask.

3. Damaged electrical connection

The electrical connection should be intact and free from visible damage.

4. Excessive condensation

Some condensation can be related to settings or room conditions, but persistent problems may justify inspecting the tubing and humidification setup.

5. Unusual airflow

Unexpected airflow changes can have multiple causes. Check the tubing first for obvious damage, but seek professional assistance if the problem continues.

Choosing the Right Heated Tube for Your ResMed Machine

Before purchasing replacement tubing, take a moment to identify your machine.

If you have:

AirSense 10
Look for compatible ClimateLineAir tubing.

AirCurve 10
Look for compatible ClimateLineAir tubing.

AirSense 11
Look for ClimateLineAir 11 tubing.

AirCurve 11
Look for ClimateLineAir 11 tubing.

The model number matters because Air10 and Air11 accessories are not simply interchangeable based on appearance or product naming. ResMed’s current accessory information separates ClimateLineAir for Air10 devices from ClimateLineAir 11 for Air11 devices.

Why the Correct CPAP Tubing Matters

CPAP tubing may look like a simple accessory, but the correct tube can affect how the overall humidification system operates.

Using the right tubing helps ensure:

• Proper machine connection
• Appropriate temperature control
• Correct Climate Control operation
• Better management of condensation
• Comfortable airflow
• Correct accessory compatibility

When ordering online, compare the machine model, tubing name, connector type, and manufacturer part number rather than relying only on a product photo.

Buying ResMed ClimateLineAir Heated Tube

If you are looking for a ResMed ClimateLineAir heated tube for AirSense 10 and AirCurve 10 CPAP machine, start by confirming your exact device model.

A reliable purchase process should include:

1. Confirm the machine model.
2. Confirm that you need Air10 tubing.
3. Check whether you need standard ClimateLineAir or an Oxy configuration.
4. Verify the product part number when applicable.
5. Purchase from a reputable medical equipment supplier.
6. Follow the manufacturer’s instructions for installation and cleaning.

For customers looking for CPAP and home medical equipment supplies, Alfa Healthcare Supply provides medical supply products and equipment information through its website.

Alfa Healthcare Supply Inc.

When purchasing medical equipment or replacement accessories, customers should also confirm prescription, insurance, and supplier requirements that may apply to their specific product and location.

A Simple Way to Think About ClimateLineAir

CPAP therapy is not only about pressure.

Comfort matters too.

You may have a properly fitted mask and the correct therapy settings, but if the air feels too cold or water repeatedly collects in the tube, your nightly experience may become frustrating.

The ClimateLineAir heated tube addresses one part of that experience by helping maintain the temperature of humidified air between the machine and mask.

For compatible AirSense 10 and AirCurve 10 systems, it can work together with ResMed’s Climate Control technology to help balance temperature and humidity.

That is why a small replacement tube can make a noticeable difference in the overall CPAP setup.

Final Thoughts: ResMed ClimateLineAir Heated Tube for AirSense 10 and AirCurve 10 CPAP Machine

The ResMed ClimateLineAir heated tube for AirSense 10 and AirCurve 10 CPAP machine is more than ordinary CPAP tubing. It is a specialized heated accessory designed to work with compatible ResMed Air10 devices and Climate Control humidification.

Its main purpose is to help maintain the temperature of humidified airflow as it travels to the mask and reduce problems associated with condensation or CPAP rainout. ResMed specifically identifies ClimateLineAir as compatible with AirSense 10 and AirCurve 10 devices.

If your current tube is damaged, worn, or you are dealing with repeated condensation, checking whether ClimateLineAir is appropriate for your machine may be worthwhile.

Most importantly, verify your exact ResMed device and choose the tubing designed for that device. If you have questions about therapy settings, oxygen use, persistent discomfort, or equipment compatibility, speak with your healthcare provider or qualified medical equipment professional.

Frequently Asked Questions About the ResMed ClimateLineAir Heated Tube

Is ClimateLineAir compatible with AirSense 10?

Yes. ResMed identifies ClimateLineAir as compatible with AirSense 10 devices when used with the appropriate setup.

Is ClimateLineAir compatible with AirCurve 10?

Yes. ResMed identifies ClimateLineAir as part of the Climate Control solution for AirCurve 10 devices as well.

Does ClimateLineAir help prevent rainout?

It is designed to help reduce condensation by maintaining the temperature of humidified air as it travels through the tube.

Is ClimateLineAir the same as regular CPAP tubing?

No. ClimateLineAir contains heating and temperature-monitoring technology designed to work with compatible ResMed Climate Control systems.

Can I use ClimateLineAir with AirSense 11?

ClimateLineAir is intended for Air10 devices. ResMed identifies ClimateLineAir 11 as the tubing for Air11 devices.

Does ClimateLineAir work without humidification?

The heated tube’s primary benefit is associated with maintaining the temperature of humidified airflow and Climate Control. For the intended Climate Control setup, use it according to ResMed’s device and accessory instructions.

What is the ClimateLineAir part number?

ResMed’s U.S. product documentation identifies the ClimateLineAir heated tube as part number 37296.

What temperature can the ClimateLineAir tube be set to?

ResMed states that the tube temperature can be set between approximately 60°F and 86°F (16°C and 30°C).

Does a heated tube make CPAP therapy more comfortable?

It can. The heated tube is designed to help maintain comfortable temperature and humidity conditions and reduce condensation. Comfort is personal, so the appropriate settings can differ between users.

Can I wash ClimateLineAir tubing?

ResMed’s product information provides cleaning instructions that include washing the air tubing in warm water with mild detergent. Follow the manufacturer’s current cleaning instructions for your specific tube.
